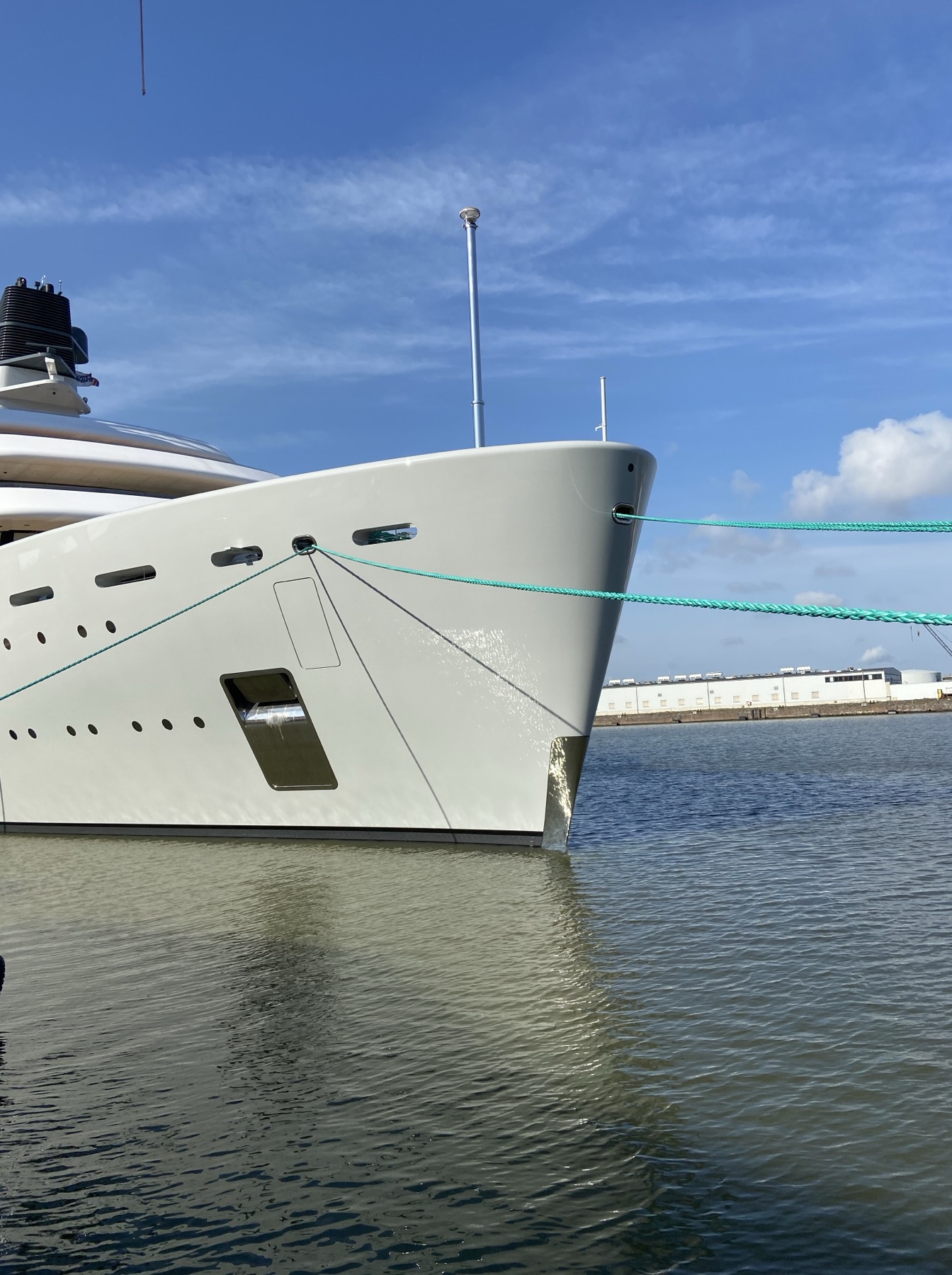

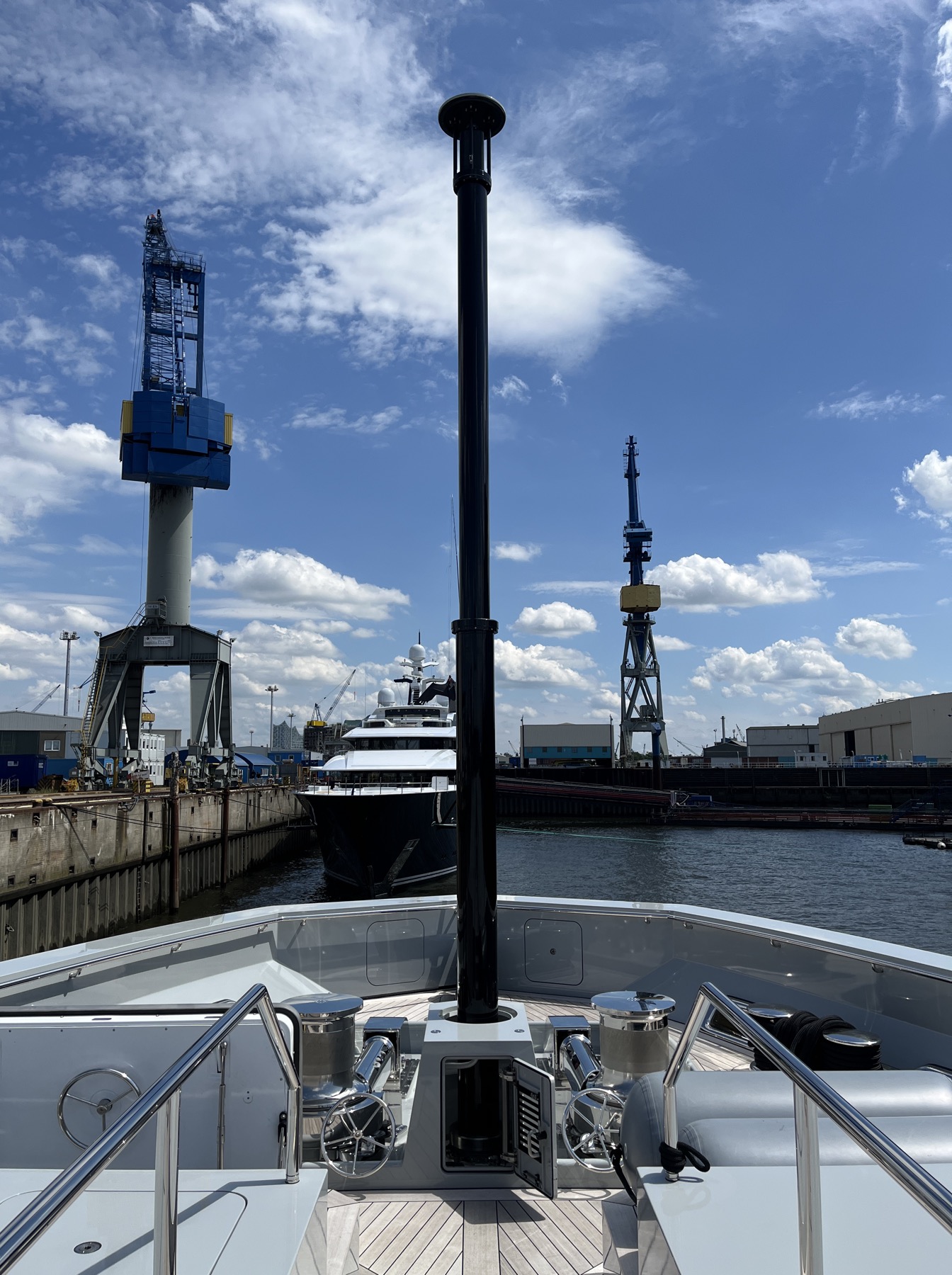

The telescopic light mast provides safe signal and working lighting on board, combining high stability with precise engineering.

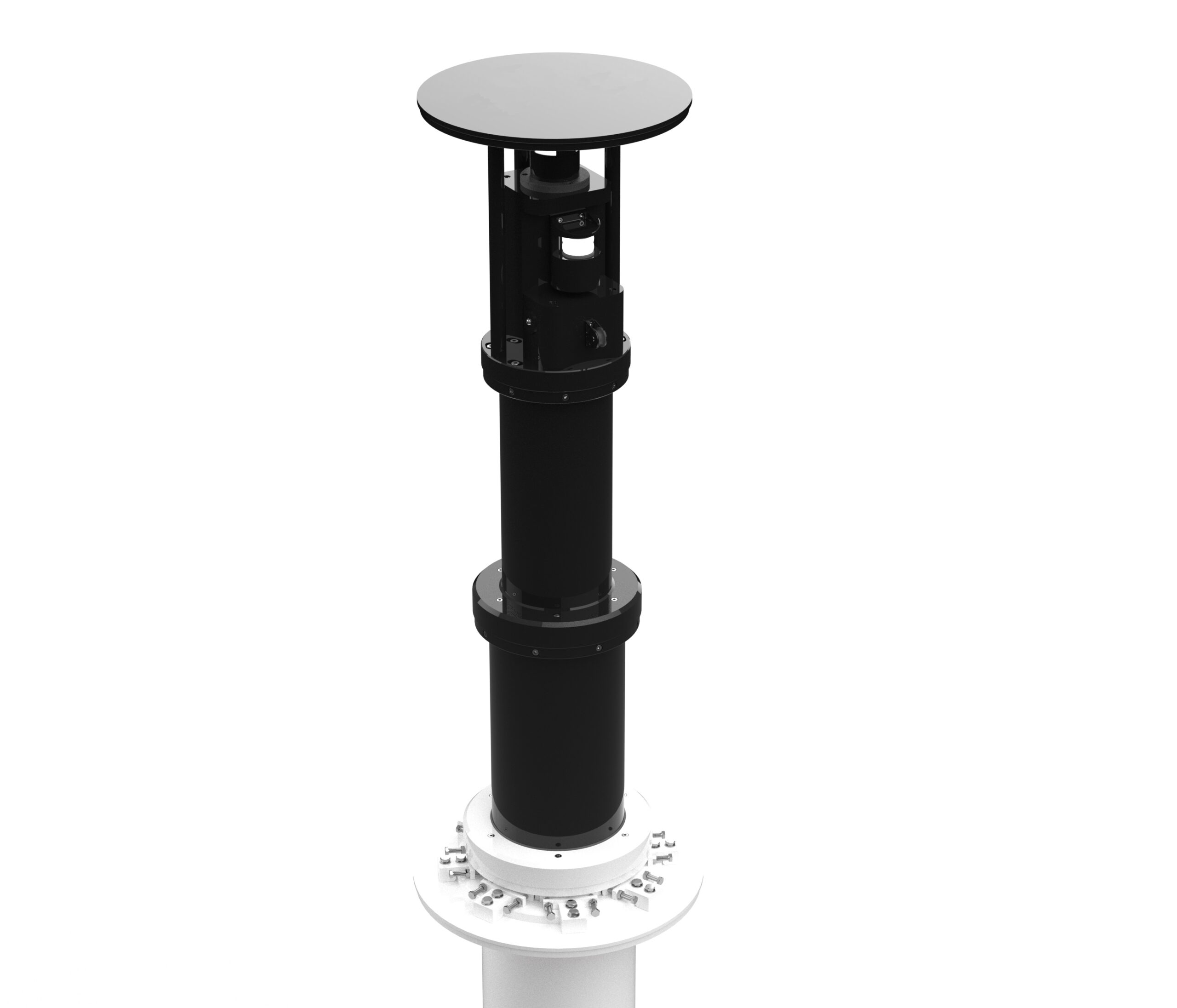

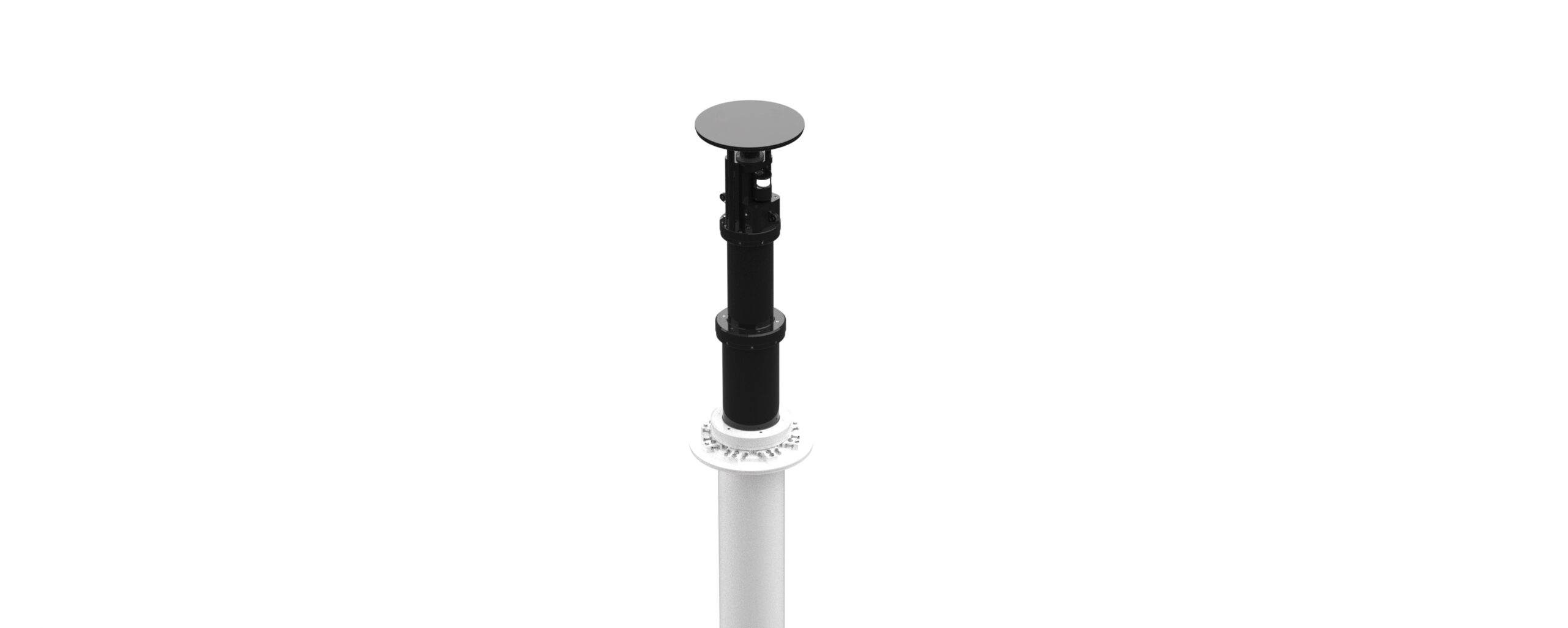

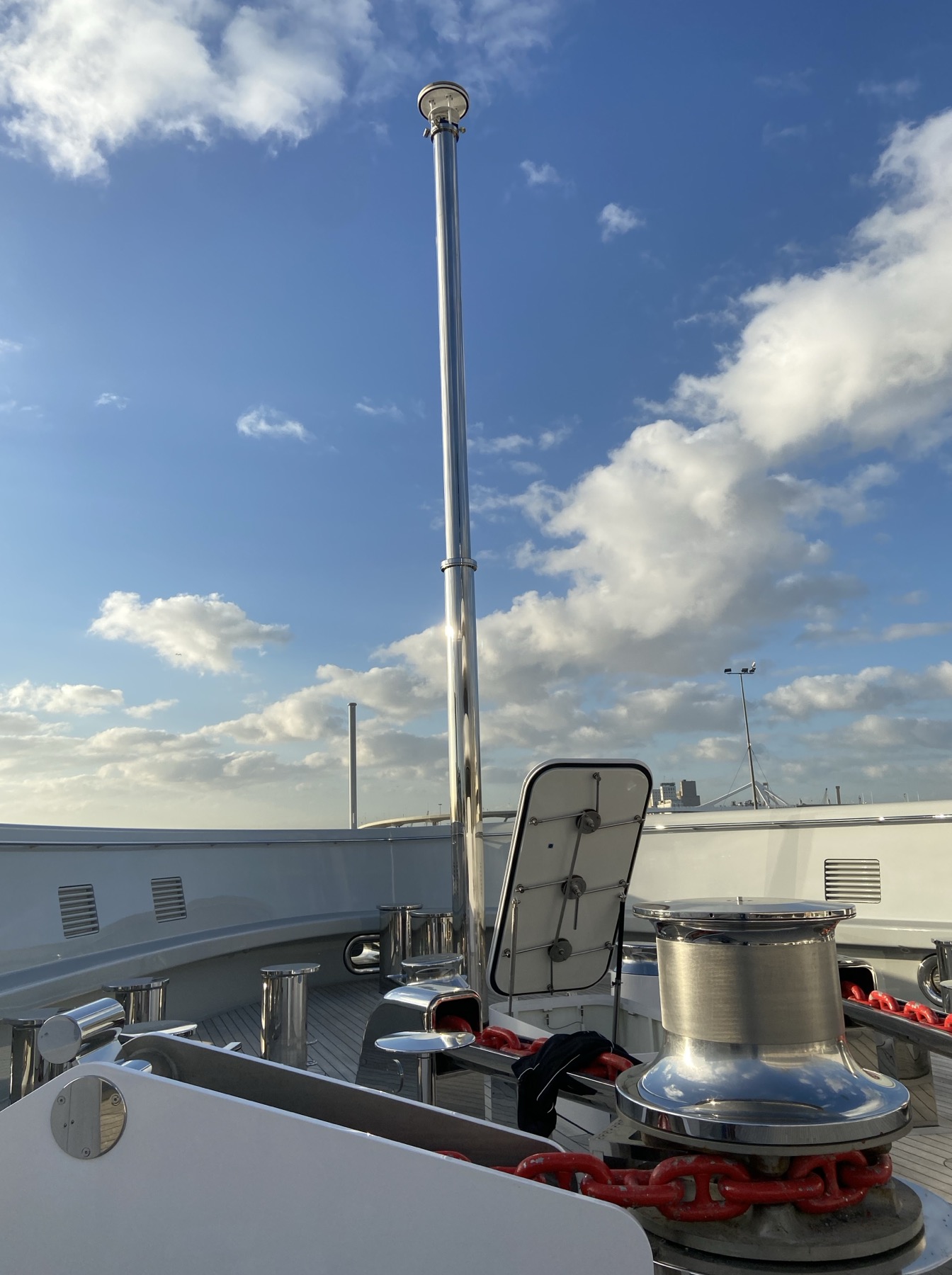

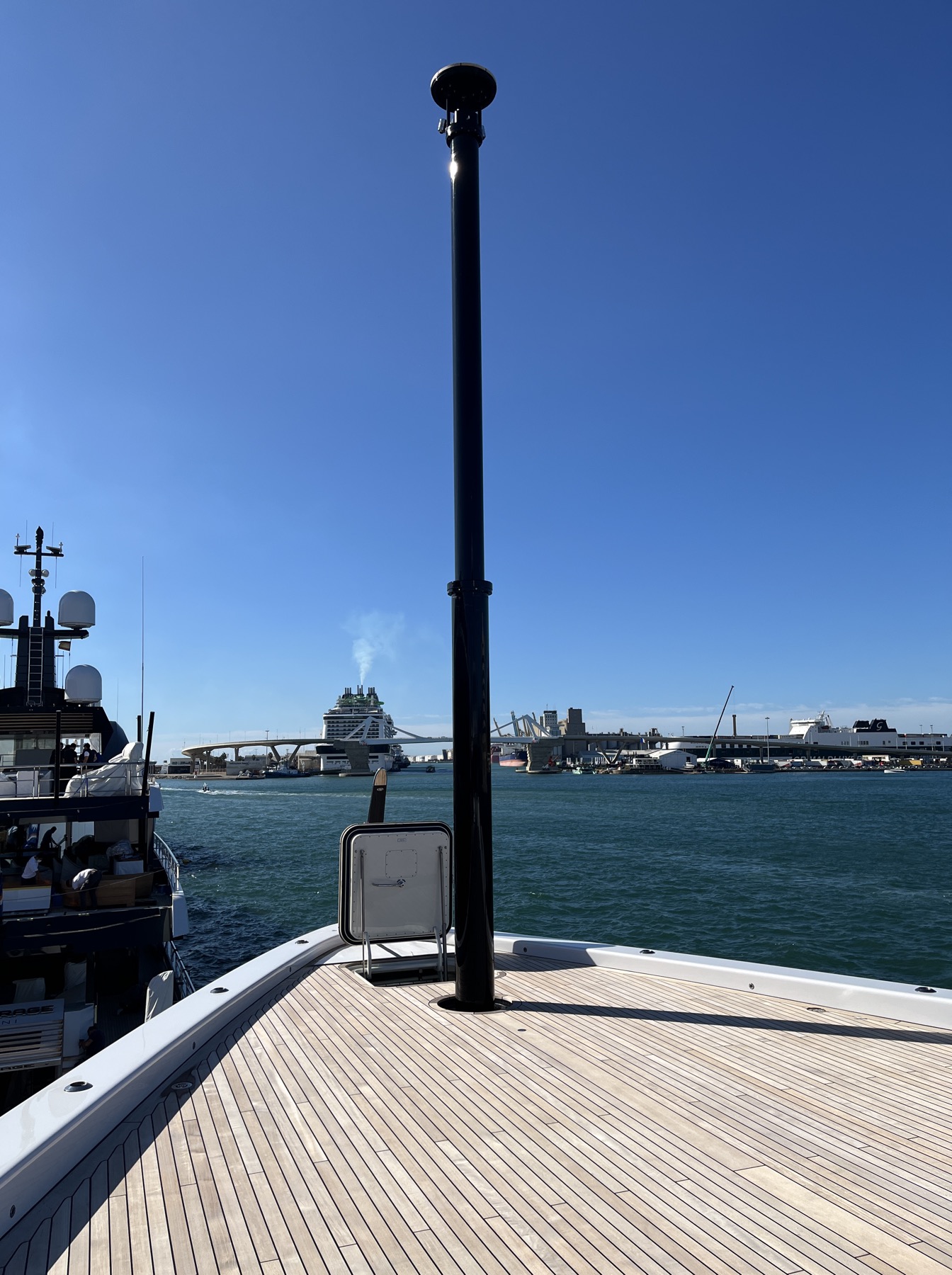

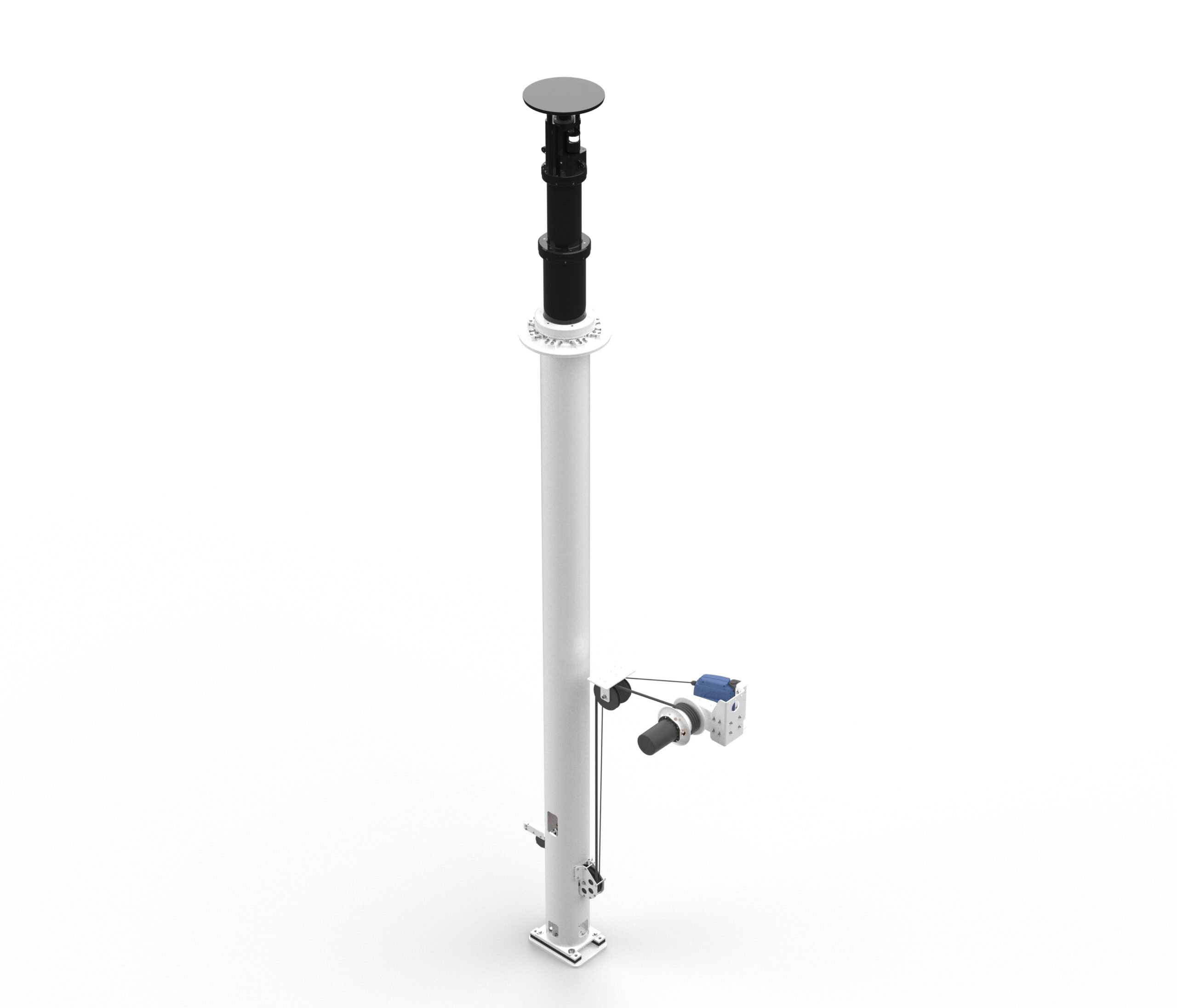

The telescopic light mast consists of a 5.1 m main tube with two integrated telescopic stages, each extending by 3.2 m. With a total stroke of 6.4 m, it provides safe signal and working lighting on board. Inflatable seals ensure watertightness at every stage, eliminating the need for any additional stays or bracing.

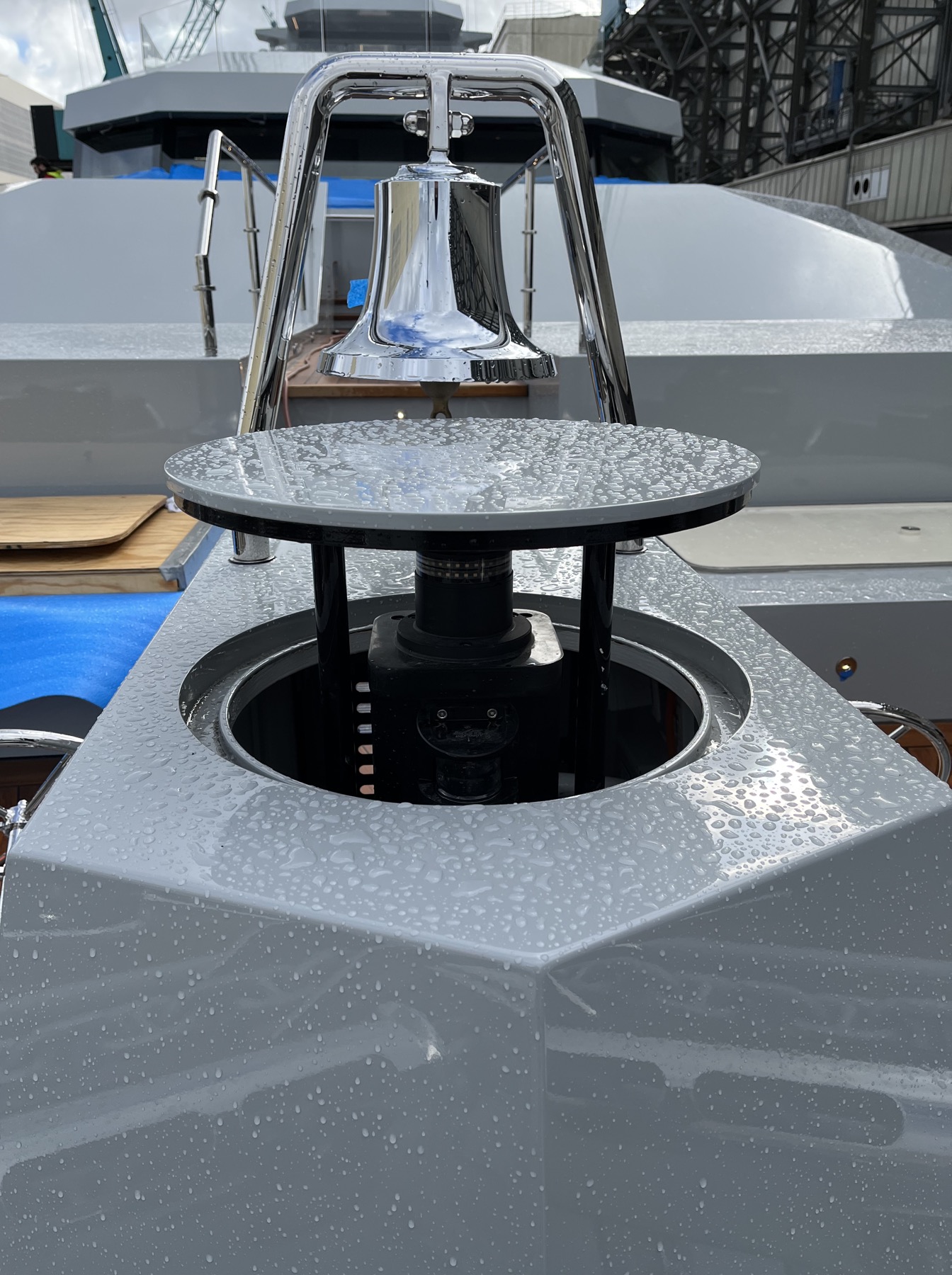

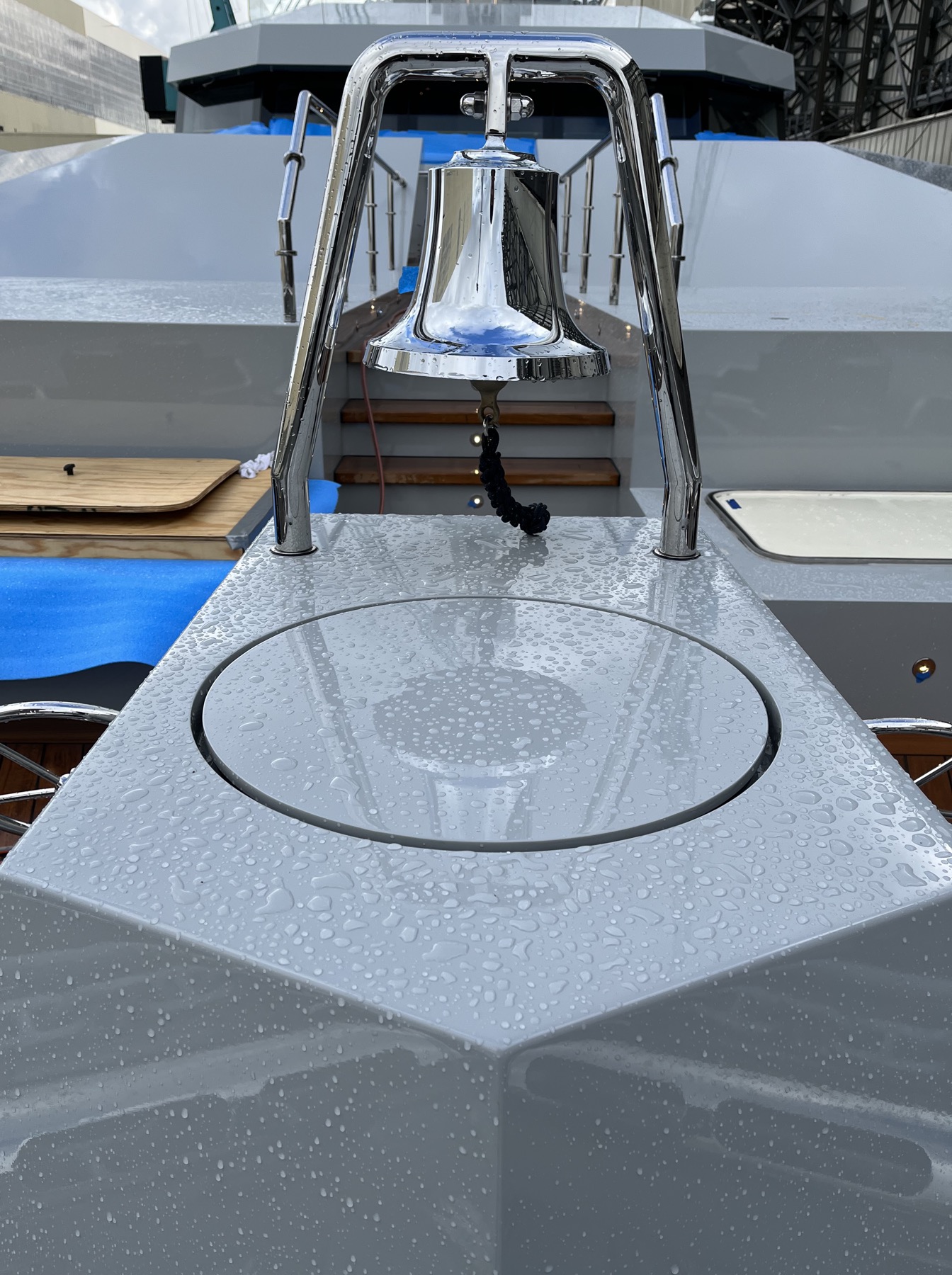

The lighting head is finished with an elegant cover that integrates flush with the deck.
The structure is manufactured almost entirely from high-grade stainless steel, with the exception of the telescopic stages, which are made from carbon fibre reinforced polymer (CFRP).
- High-grade stainless steel and carbon fibre reinforced polymer (CFRP)
- Stroke length according to customer requirements

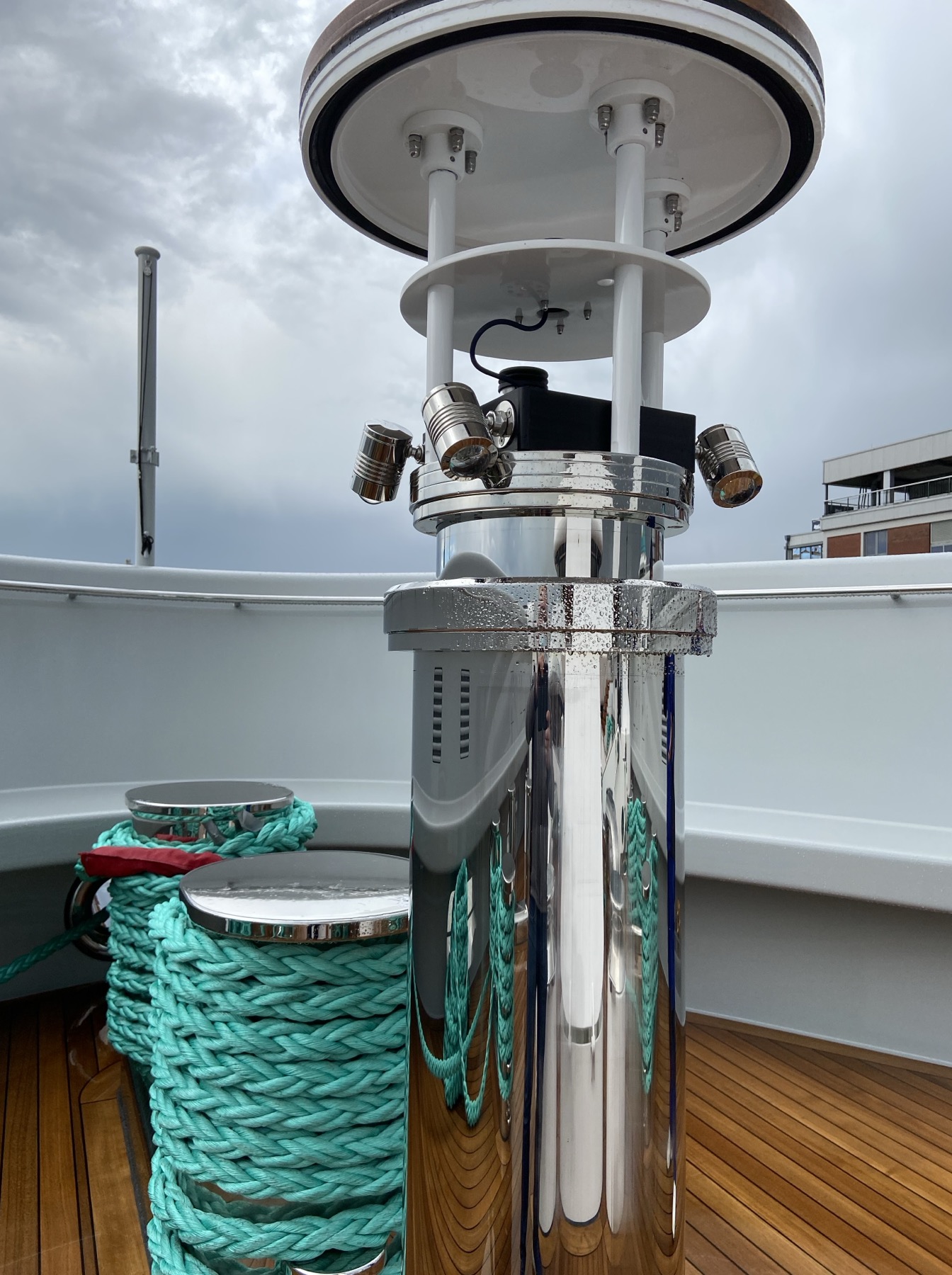

- Custom lighting head according to customer requirements
- Proven sealing system for the telescopic stages

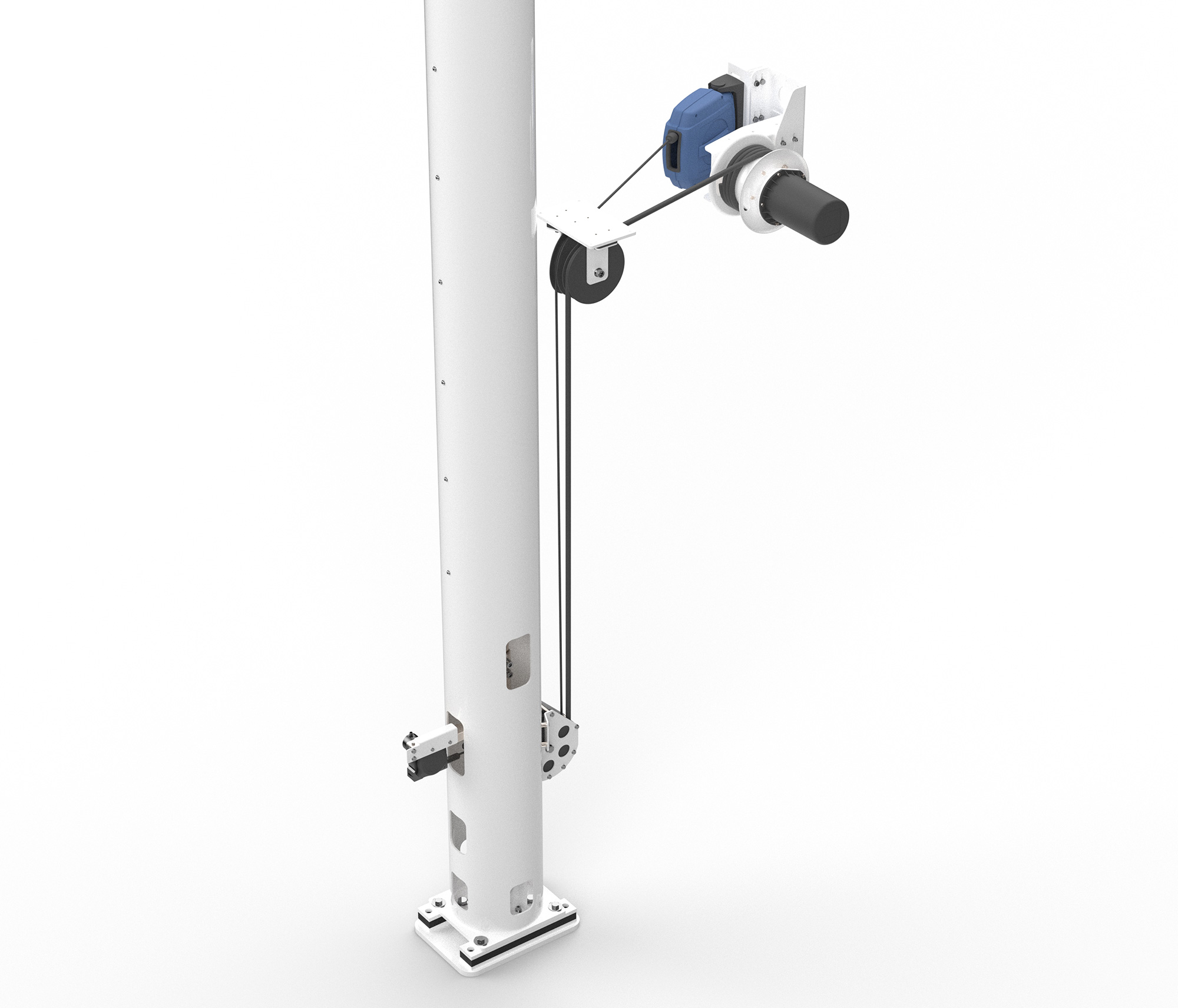

- Hydraulic lifting cylinder integrated inside the mast
